POWER SUPPLY JBZ-02

Gas Volume Converters

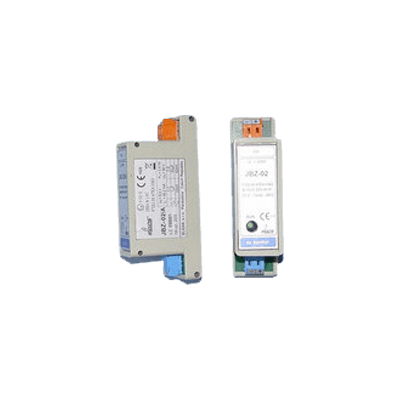

JBZ-02

JBZ-01 is an Intrinsically safe power supply, designed for assembly on DIN bar 35 mm. The power supply serves as an external power supply for the ELCOR-94 Electronic Volume Converter.

JBZ02
Mechanical parameters



plastic box for assembly on DIN bar
dimensions (w x h x l) 27 x 42 x 96 mm (height without holder)
weight 0,06Kg
clamps for connection of cables 1,5 mm
Environment
ambient temperature -25 C to +60 C
protection class IP20 (according to EN 60 529)
humidity 0 % to 95 % relative, without condensation
Non-hazardous variant
classification II(2)G [EEx ib] IIC
ATEX approval FTZÚ 05 ATEX 0363
max. value of voltage Um 250 V (variant JBZ-02)
60 V (variant JBZ-02/A)
For full technical specification please download the data sheet



  • Intrinsically safe power supply
  • Maintenance-free design
  • Designed to deliver power to ELCOR-94
  • Mains AC power network voltage 230V/50Hz
  • Output voltage 7,9V DC
  • EC Certified FTZU 01 ATEX 0005X, classification II 2G Ex ib IIB
  • Working temperature -25°C to 60°C
