G10/G16/G25
The Domusnext® counters are next-generation measuring instruments, electronic, static, telemetered and managed remotely, offering easy, reliable installation.
| G10/G16/G25 | |
|---|---|
| Type Approval | MID T10362 Module B and CE-193 Module D |
| Measuring range | G10: 0.10-16.0 m3/h G16: 0.16-25.0 m3/h G25: 0.25-40.0 m3/h |
| Standard temperature for volume output | 15 °C |
| Operating temperature | -25 °C to 55 °C |
| Standard pressure for volume output | 1013.25 mbar |
| Gas application | 2nd Family Group H and L (EN 437) |
| Max. operating pressure | 500 mbar |
| Accuracy class | 1.5 |
| Measuring AccuracyQmin Qt | ± 3.0 % |
| Measuring AccuracyQt Qmax | ± 1.5 % |
| Max. Pressure drop | G10, G16: <2 mbar at Qmax G25: <3 mbar at Qmax |
| Nr. of tariffs | 3 |
| Depth of consumption registers @ 1 day rate | 72 days |
| Depth of consumption registers @ 1 hour rate | 72 days |
| Nominal Diameter DN | G 2” - ISO 228/1 |
| Inlet & Outlet Distance | G10, G16: 280 mm G25: 335 mm |
| Width x Height x Depth | 436 x 188 x 188 mm |
| Weight | 5.7 kg |
| Resistance to water, dust and impact | IP 65, IK 08 |
| ATEX | zone 1 Ex II 1/2 G Ex ib IIB T4 (CEC12 ATEX019 12/2031 AET 944) |
| Display | 2 lines multi-segment display Upper line 10 characters Lower line 9 digits Automotive range –30°C to +85°C |
| Optical port | EN 62056-21 |
| Battery supply | 3.6 V size D lithium cell (19Ah) 3,6 V size AA lithium cell (2.2Ah) |
| Functioning without external battery | > 5000h |
Available with GPRS communication technology
Exact Measurements- no need for approximate values leading to estimation errors
Transparent and timely billing
Innovative and Reliable

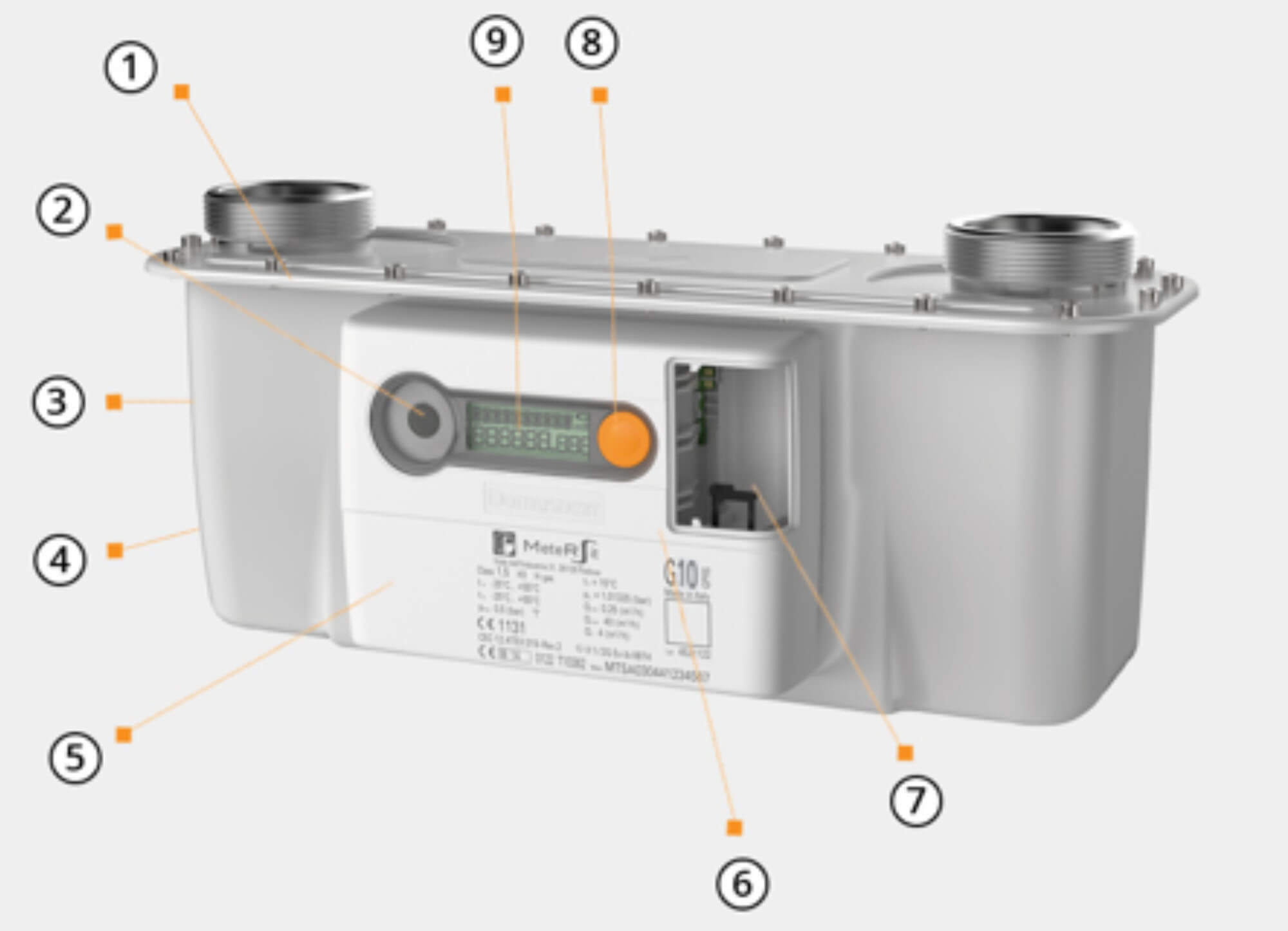

1 Small Size: Compact design. Easy to install and initialise.
2 Optical Port: Compliant to EN 62056-21.
3 Built-in communications system: Bi-directional radio communication of data, commands and alarms.
4 Consumption curves: Hourly and daily consumption storage for 72 days.
5 Antenna: Integrated high performance antenna. Optional external antenna on request.
6 Battery 1: Replaceable 3.6 V D-size lithium battery (19Ah); with transmission of low battery and battery-removal alarms.
7 Replaceable SIM: SIM is replaceable on location; it is accessible from the battery compartment.
8 Single button: Supports the display of messages.
9 Display: Top line has 10 alphanumeric characters and the bottom line has 9 numeric characters, with a high resistance to sunlight.
